GTK Boxer A2 Camera-Matched Draft Model

For this project, my client entrusted me with creating an authentic 3D model of the GTK Boxer A2, aiming for AAA quality standards for real-time simulation software. I gathered an extensive collection of reference photos, videos, and text descriptions and conducted in-depth research to establish a solid foundation for the modeling process. Leveraging all available resources, I pushed my modeling skills to their limit, crafting the entire vehicle using camera-matched techniques. By the end of the project, I had compiled a PureRef reference board containing over 1,000 images and video frames, while my final modeling scene included more than 400 cameras with image planes attached. Most of these cameras were camera-matched, accounting for scene perspective and focal length (FOV) at which the original photo (used as an image plane) was taken. This process resulted in an exceptionally detailed draft model of the GTK Boxer A2. The term "draft" here indicates that the model is neither low-poly nor high-poly (yet) but rather a simplified polygonal version used to validate construction, dimensions, proportions, details, and placements.

Some notable model features include:

— The 3D model closely replicates CAD models that the vehicle manufacturer holds in-house, based solely on publicly available photos and videos.

— The model effectively captures subtle design differences among the GTK Boxer A0, A1, and A2 modifications, thanks to extensive reference gathering and research.

— The drive module and mission module are modeled as separate entities, just like in the real vehicle. Both modules feature realistic geometrical details that are exposed when separated. The drive module is designed to accommodate other mission modules in the future if needed.
— The vehicle includes a highly accurate FLW 200 remote weapon station turret equipped with an H&K GMG 40mm automatic grenade launcher (interchangeable with standard 7.62mm or 12.7mm machine guns).

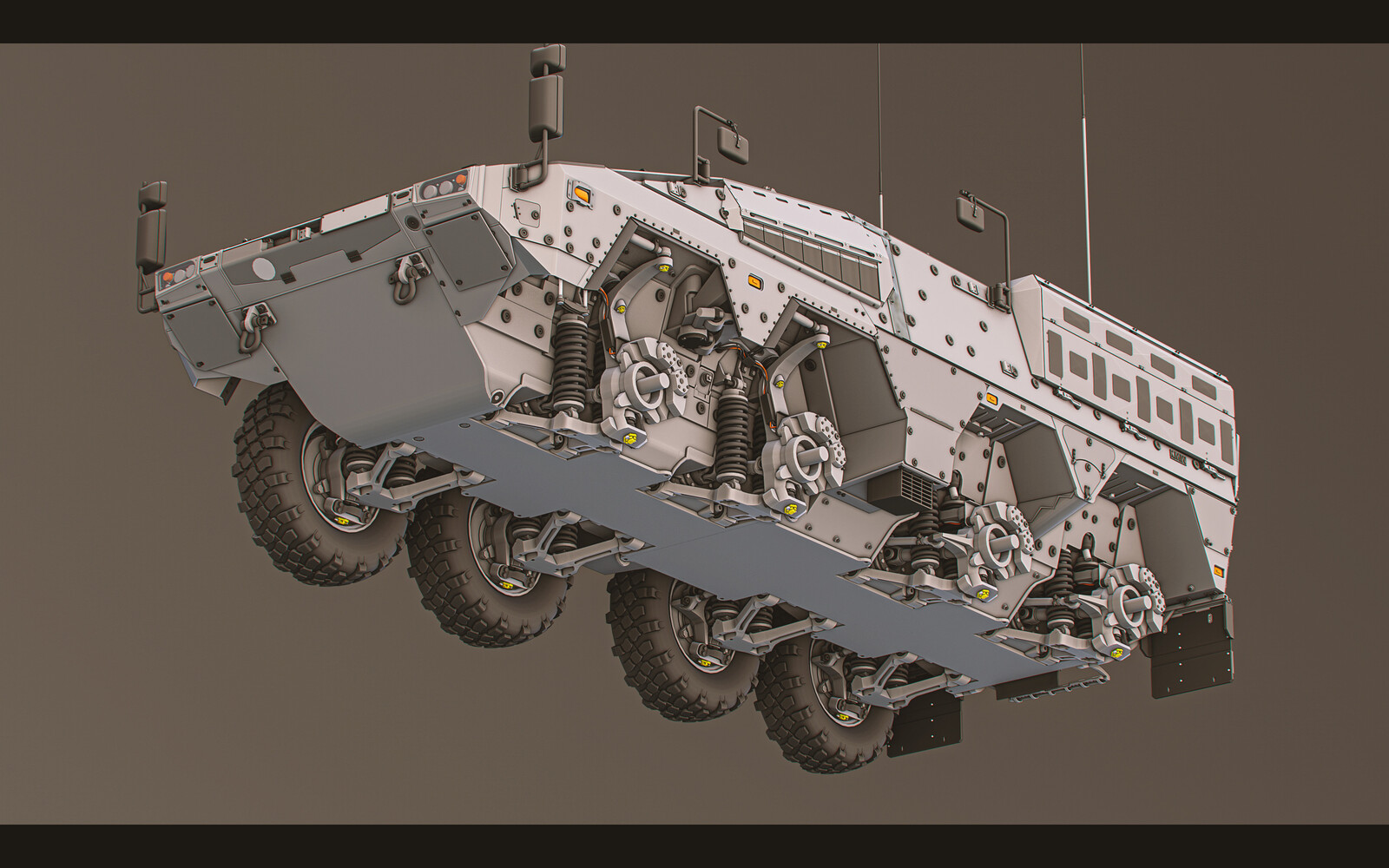

— A detailed suspension system with cardan driveshafts is fully modeled.
— The driver’s hatch/cockpit is fully modeled with wipers and protective covers for the driver’s periscopes.
— All hatches on both modules are operable and include basic interior modeling. Personnel and commander hatches can be opened, while the mission module features a modeled basic interior space.
— The landing hatch at the rear of the mission module is fully functional—it can lower and raise as needed. Its door operates independently, with hydraulics and mechanisms accurately represented.
— Radiator fan rubber covers are functional and can be animated to simulate being pushed outward by air exhaust from the engine cooling system. Relevant interior details are also modeled.

Some interesting takeaways I discovered during this project:

— Continuing to search for new references even after completing initial research can be incredibly beneficial—new media can emerge unexpectedly and provide invaluable insights. For instance, when I began this project, the GTK Boxer A2 was a relatively new modification with limited high-quality references available. By monitoring online sources every few days, I eventually came across new photos that highlighted critical areas of the vehicle I hadn’t been able to study before. These ongoing discoveries significantly improved the final model's accuracy compared to what would have been possible if I had stopped searching after my initial phase.
— Examining other vehicles from the same manufacturer can reveal shared design elements or details that help fill gaps in references for your target vehicle. For example, I found that the GTK Boxer shares smaller components with vehicles like Fennek A2/A3, Fuchs 1A8, GFF4, GEFAS EPR, ATF Dingo, Luchs A2, SPZ Marder 1A3, Unimog 435 U1300, and Mowag Eagle. Identifying these similarities allowed me to use references from other vehicles to supplement missing details for the GTK Boxer A2.
— Videos can be an underrated source of reference material despite often being lower resolution or blurrier than photos; they frequently provide unique angles or close-up views not captured in still images. By reviewing videos frame-by-frame and saving key frames as still images, I extracted valuable references that significantly enhanced my work.
— Avoid getting overwhelmed by excessive detail when working with many references. Focus on curating only essential materials and prioritize high-quality shots over quantity. Using several "global" images with minimal distortion and high resolution can help establish accurate dimensions and overall size through camera-matching techniques for the entire vehicle. Once this foundation is set, you can selectively use detail-oriented images to model specific components or areas of interest. While global camera-matched shots should be as precise as possible since they define your model's overall framework, detailed shots can sometimes rely on your experience rather than strict camera-matching methods.
